The UDI 1700 digital panel indicator brings a wide choice of functionality to users and is the ideal companion to other Honeywell panel-mounted instruments. The panel indicator's small 1/8 DIN size allows it to easily fit into a small panel space, while its large 14-mm four-digit LED display enables operators to read vital information from a distance. The digital panel indicator's jumper-free option boards and plug-and-play technology allow users to easily add to its features. Options such as alarm relay output, dual-alarm relay and linear output retransmission are all field upgradeable. This capability allows the user to pay only for the options that are required to satisfy individual application requirements.
UDC 3500 is a next-generation universal controller in the popular 1/4 DIN size. It is available as a single- or dual-loop controller and can be used in wash-down applications. Users benefit from an accuracy of 0.10% and a scanning rate of 166ms. The UDC 3500 universal controller can be configured with a pocket PC or computer and is very easy to operate and maintain. Its universal spare parts further add to the ease of maintenance. The universal digital controller possesses adequate power and cost effectively brings with it several advanced features such as enhanced set point programming, fast scanning and on-board diagnostics.
UDC3200 universal controller is a next-generation, highly accurate controller; it is capable of 0.2% accuracy and includes a fast scanning rate of 166ms. This digital controller can be programmed using a pocket PC and be used in wash-down applications. Universal spare parts make the UDC3200 1/4 DIN controller easy to maintain, while on-board diagnostics and plug-in circuit boards simplify troubleshooting and repair. This 1/4 DIN controller helps users reduce unscheduled production downtime and improve productivity for a significant increase in efficiency and output.
UDC2500 is a high-powered microprocessor-based temperature controller, available in the popular 1/4 DIN size. Besides temperature, it monitors and controls pressure, flow, level and other process variables and is ideal for wash-down applications in the food and beverage and pharmaceutical industries. Intuitive design and unique features makes this digital controller easy to deploy, configure and maintain. With an accuracy of 0.25%, UDC 2500 allows users to significantly improve the quality and efficiency of their production environment. Advanced features such as the thermocouple health diagnostic help with proactive maintenance, while Accutune III with fuzzy overshoot suppression, which recognizes both setpoint and load changes, makes the installation and set-up quick and easy.
The UDC1700 is a microprocessor-based 1/8 DIN controller for monitoring and controlling temperature and pressure levels in a wide range of applications such as environmental chambers, furnaces, ovens, packaging machines and other applications in the plastics and food & beverage industries. The versatile 1/8 DIN universal controller is extremely flexible and has been designed for tough production conditions. This digital controller assures process security, is user-friendly with a quick configuration process and enables easy troubleshooting and repair.
The small size of the UDC1200 universal controller makes it ideal for applications where panel space is limited, and where performance and flexibility are very important. The large and easy-to-read dual four-digit display and tactile keypad make the digital controller easy to configure and use. Its outstanding flexibility enables users to configure the unit for many applications and change it if required. In addition, users benefit from a reduced initial purchase price is brought down because they only order and pay for the options required for their application. On-board diagnostics make the UDC1200 digital controller easy to troubleshoot and the plug-in circuit boards make the unit easy to repair.

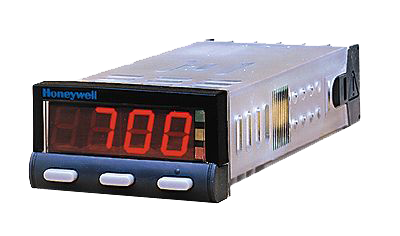

The 1/32 DIN faceplate and shallow case depth allow the UDC700 universal controller to be installed in a 45mm x 22mm panel cutout. Automatic tuning, 0.25 percent accuracy and temperature stability of 0.01 percent of span per degree Celsius ensure that process parameters are accurately measured and closely maintained by this digital controller. UDC700 digital controller comes with a 10 mm four digit, red LED display that provides all essential information clearly and quickly. The water and dust resistant temperature controller is easy to operate and configure and delivers accuracy and flexibility, which make it suitable to control temperature and process variables across many industries. This digital controller is an ideal and cost effective companion for ovens, kilns, plastic molding and extruding machinery, extruders, dryers and packaging machine. The UDC700 universal controller also includes an indicator-only model for users who simply want to monitor a process.
Designed for efficient and effective operation, the DCP550 series provides 0.1% accuracy on up to 2 inputs, with 16 digital outputs for event or time sequencing, 16 digital inputs for remote control, and a user-friendly interface for operation and configuration. Honeywell's DCP551 single channel programmer is available with one or two inputs and has one loop of control. It supports up to 99 program profiles with up to 99 segments per profile. The DCP552 is a dual channel programmer with two inputs and two loops of control. It supports up to 49 dual program profiles with up to 99 segments per profile set. A universal input accepts thermocouple signals, resistance temperature detector (RTD) signals, DC voltages and DC currents.
Key Specification:
DCP300 is a microprocessor-based 1/4 DIN controller/programmer ideal for an extensive range of applications. Two models of the processor are available-DCP301 is a single-channel programmer with one input and one loop of control, while DCP302 is a dual-channel programmer with two inputs and two loops of control. In addition, a temperature and relative humidity calculation model is also available with the DCP302. The 1/4 DIN controller supports up to 19 program profiles with up to 30 segments per profile and offers high accuracy of 0.1% for input 1 and 0.2% for input 2. The DIN programmer/controller is very easy to use, and makes documentation of process requirements simple.
DCP200 is a microprocessor-based 1/4 DIN programmer/controller suitable for use in compact panel spaces. With an accuracy of 0.1%, DCP200 programmer/controller is ideal for use across a wide range of applications, including heat treating, environmental chamber control, sterilizers and dryers. Its robust profiling options can support up to 64 program profiles with up to 255 segments. With these unique profiling capabilities, this temperature and process programmer/controller boosts process efficiency, reduces the risk of errors and enables improved analysis and documentation of process conditions. The temperature and process programmer/controller is designed for harsh production environments and comes equipped with features for handling emergency situations like thermocouple break and power failures.
DCP100 is a microprocessor-based 1/4 DIN programmer/controller for controlling process variables such as temperature, humidity, flow and other variables across a wide range of applications such as heat treating, environmental chambers, sterilizers and dryers. This 1/4 DIN programmer/controller provides 0.25% accuracy and ensures excellent flexibility with its universal power supply, inputs and plug-in options. Robust program storing capability of the DCP100 programmer/controller (support for up to 8 programs) makes it suitable for a wide range of profiling needs. DCP100 programmer/controller is designed for harsh production environments and can easily be upgraded.
The Honeywell DCP50 is a microprocessor-based 1/16 DIN programmer/controller that combines high functionality and quality at a competitive price. Two large displays and user-friendly keys make the DCP50 easy to use. Message display guides you, step by step, through setup, configuration, and operation.
Key Specification:
The DC1000 family of microprocessor-based controllers combines a high degree of functionality and reliability in an affordable package. These temperature controllers come in four different sizes - 1/16 DIN, 1/8 DIN, 3/16 DIN and 1/4 DIN. In addition to the basic control requirements, these microprocessor-based controllers has advanced features which make it suitable for regulating temperature in a variety of applications like dryers, semiconductor packaging/testing, plastic processing, packaging machinery, painting and coating and climatic chambers. The microprocessor-based controller can be configured very easily and comes loaded with user-friendly features which make it a snap for the operators. DC1000 temperature controller offers high degree of flexibility and can be used in a variety of applications.
